Description

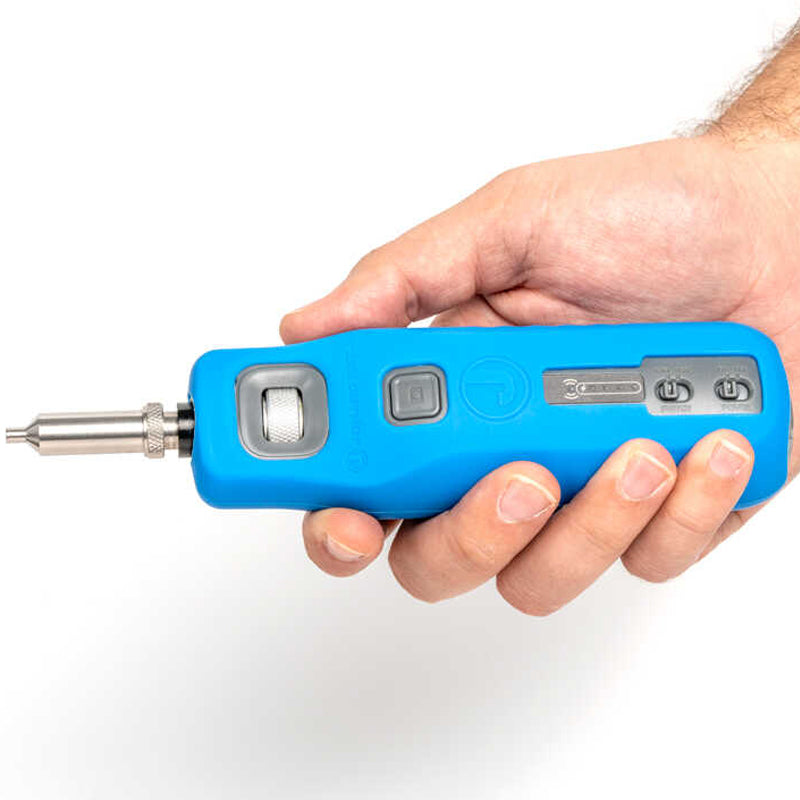

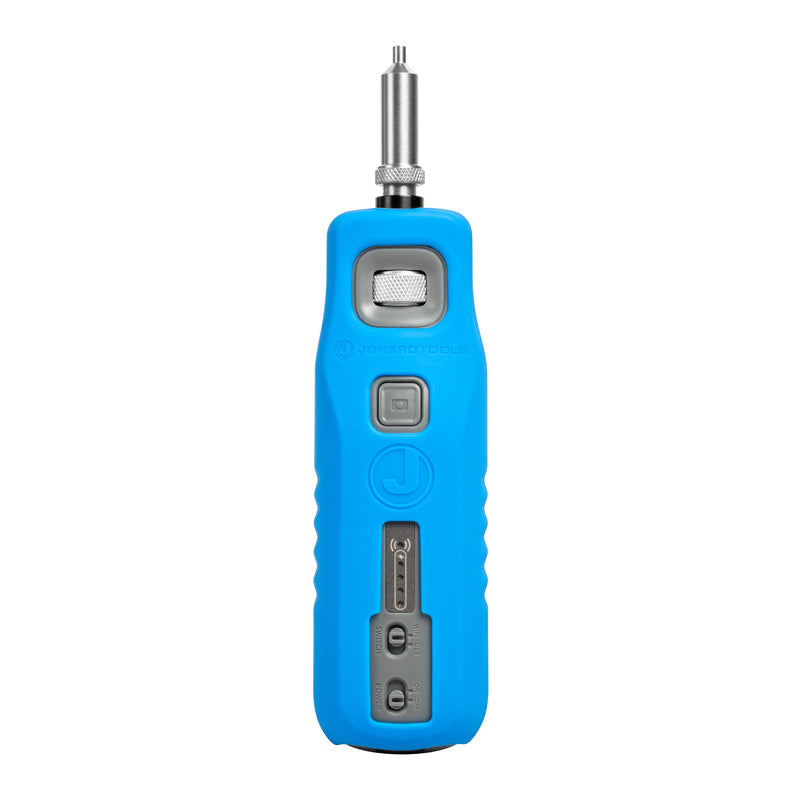

Wireless Fiber Inspection Microscope

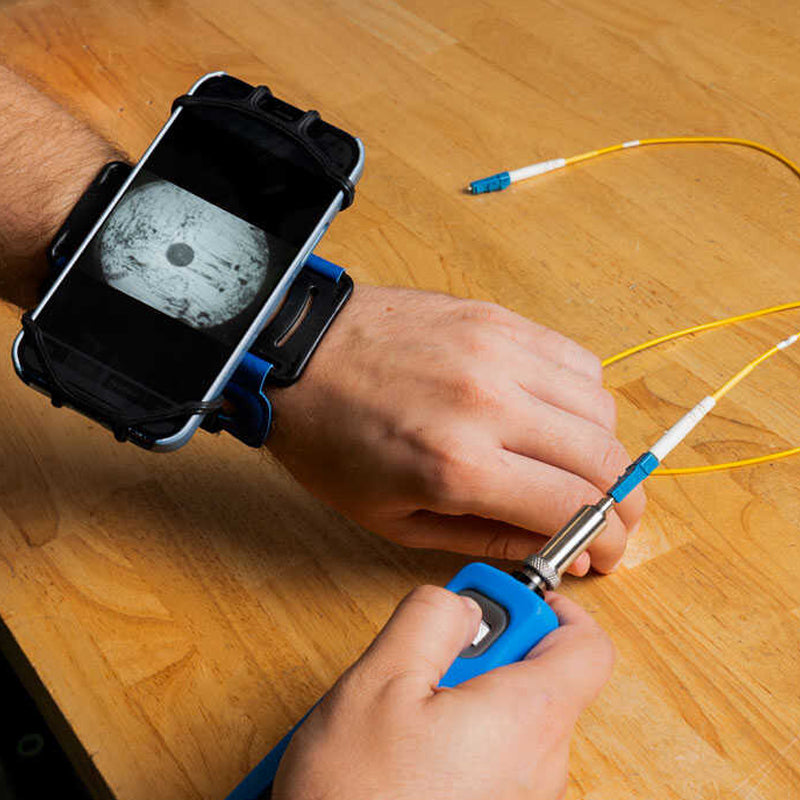

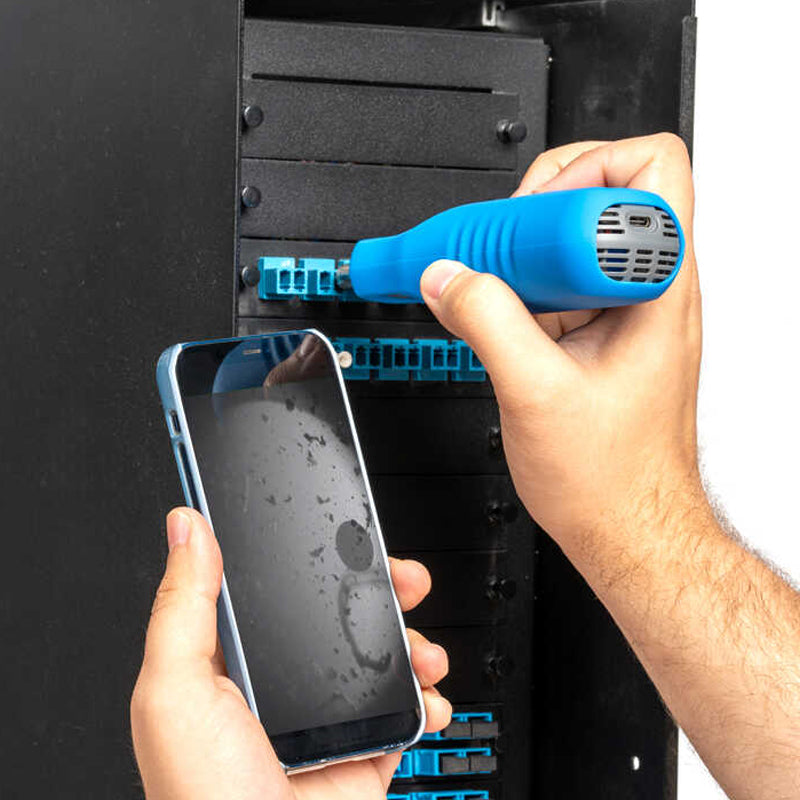

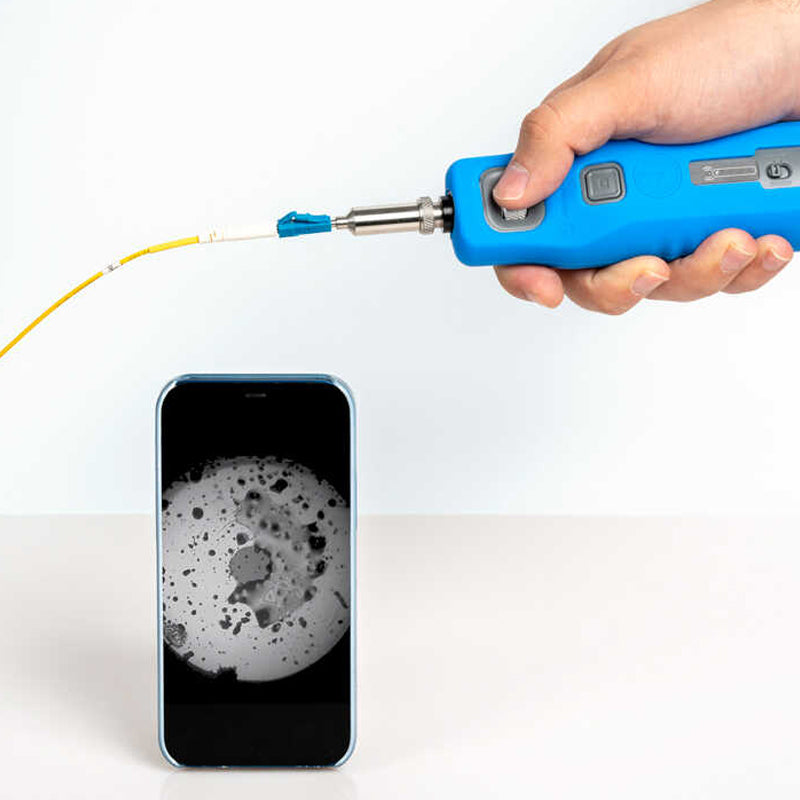

This portable Wi-Fi end-face probe provides clear high-resolution images of fiber optic connector ferrules in real time on a smart mobile device or tablet. It also features a One Press automatic analyze function, which automatically generates and records a Pass/Fail report.
Features
Features

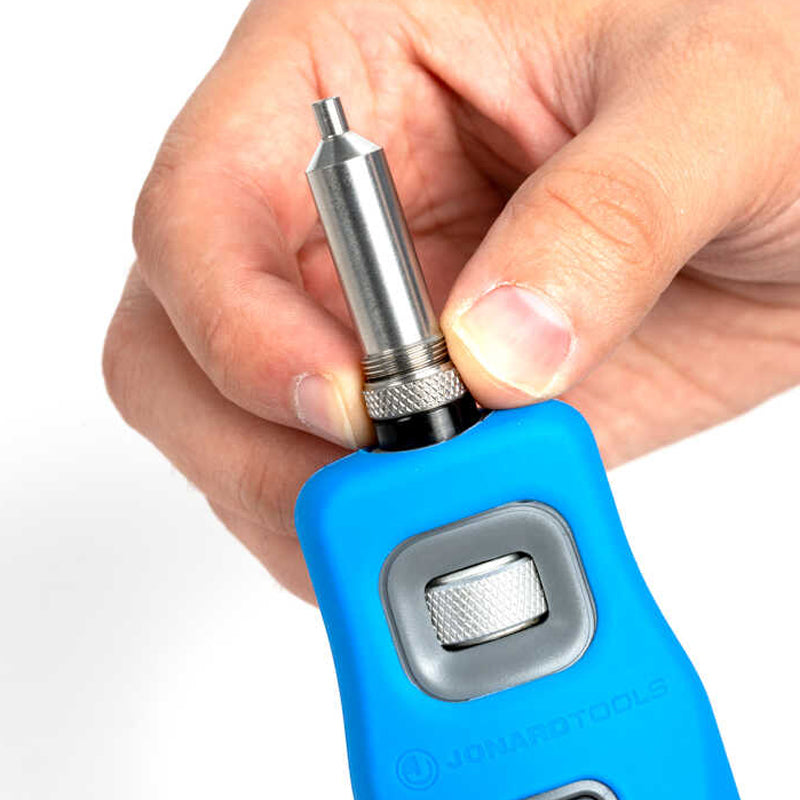

- Inspects male and female PC/UPC SC, ST, FC, and LC fiber connectors and ports using the 5 included adapters

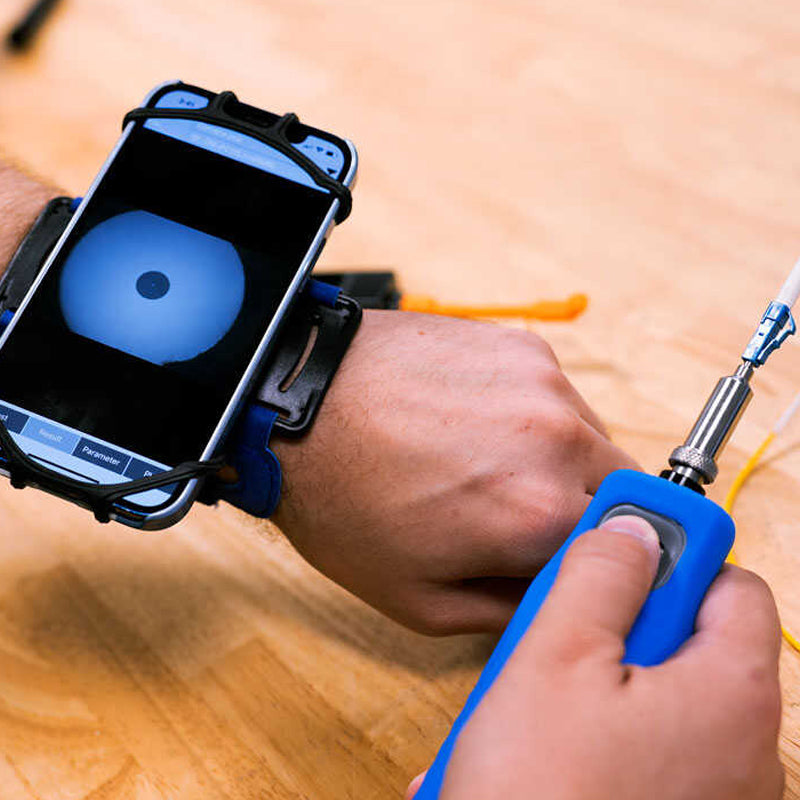

- One Press auto analyze function automatically generates and records a Pass/Fail report
- 200x magnification and high resolution camera provide a crystal clear image directly on your smart device
- App is free to download and is compatible with both Android and iOS
- Can be used via USB to connect to our OTDR-1500 or other device
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| OPTICAL SPECIFICATIONS | |
| Lens Magnification | 200X |
| Lens Resolution | 0.75 µm |
| Camera Resolution | 1280 x 1024 |
| Focus Range | 4 mm |
| CONNECTIVITY & POWER | |
| WiFi Range | 100 m |
| Battery Capacity | 3000 mAh |
| Battery Life | 3 hr |
| PHYSICAL CHARACTERISTICS | |
| Dimensions | 9.45 in x 4.92 in x 2.01 in (24 cm x 12.5 cm x 5.11 cm) |
| Weight | 0.77 lb (349.58 g) |
| UPC | 810132437595 |

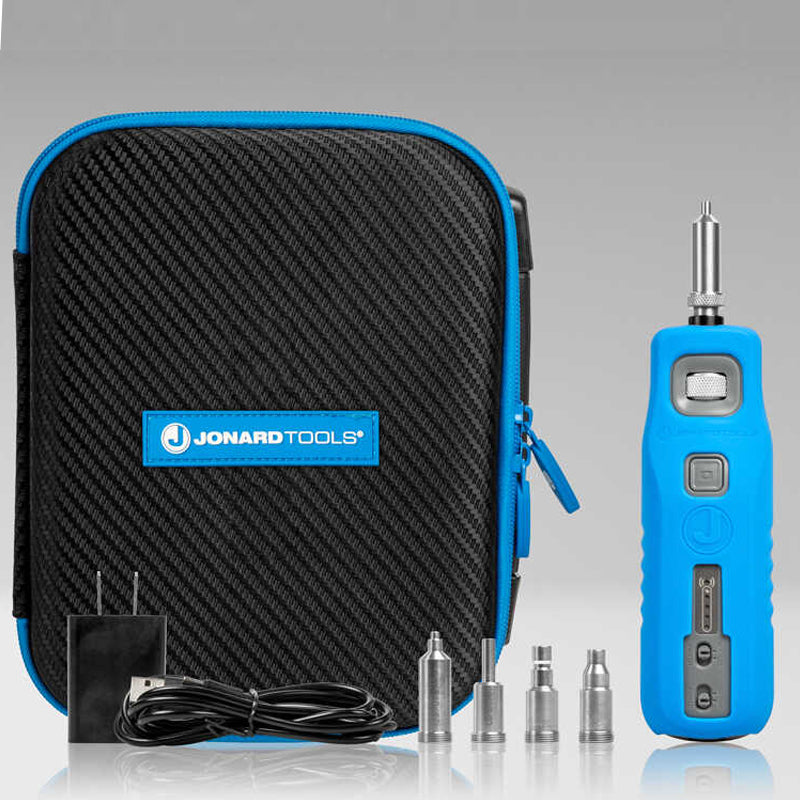

What’s In The Box
What’s In The Box
- Qty 1 - Wireless Fiber Scope (WFM-100 Wireless Fiber Inspection Microscope)

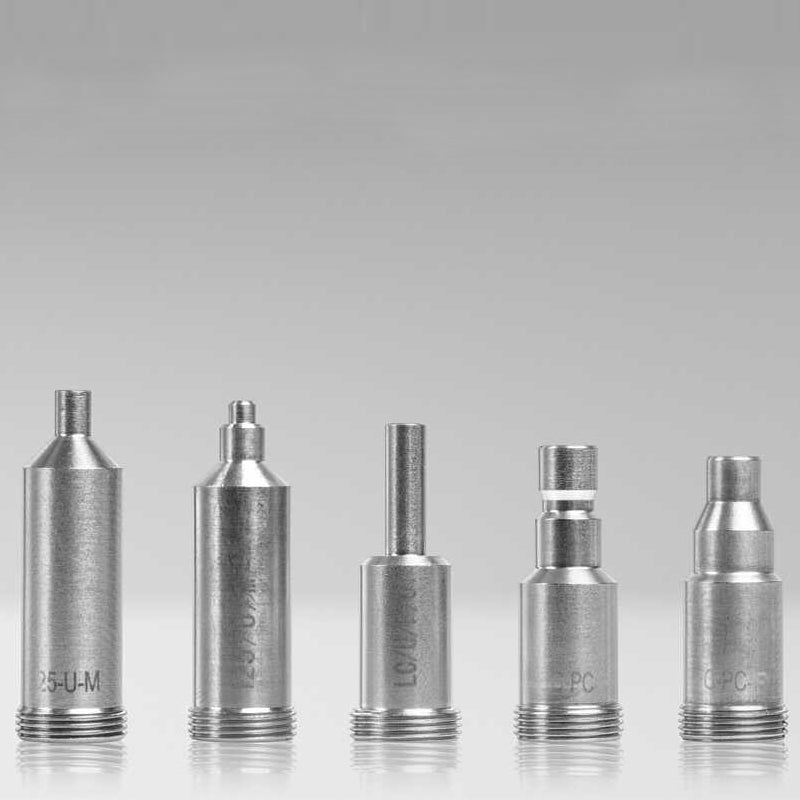

- Qty 1 - 2.5 mm FC/SC/ST (PC/UPC) Male Adapter
- Qty 1 - 2.5 mm FC/SC/ST (PC/UPC) Female Adapter
- Qty 1 - 1.25 mm LC (PC/UPC) Male Adapter
- Qty 1 - 1.25 mm LC (PC/UPC) Female Adapter
- Qty 1 - USB-C Cable
- Qty 1 - Charger
- Qty 1 - Instruction Manual
- Qty 1 - Carrying Case
