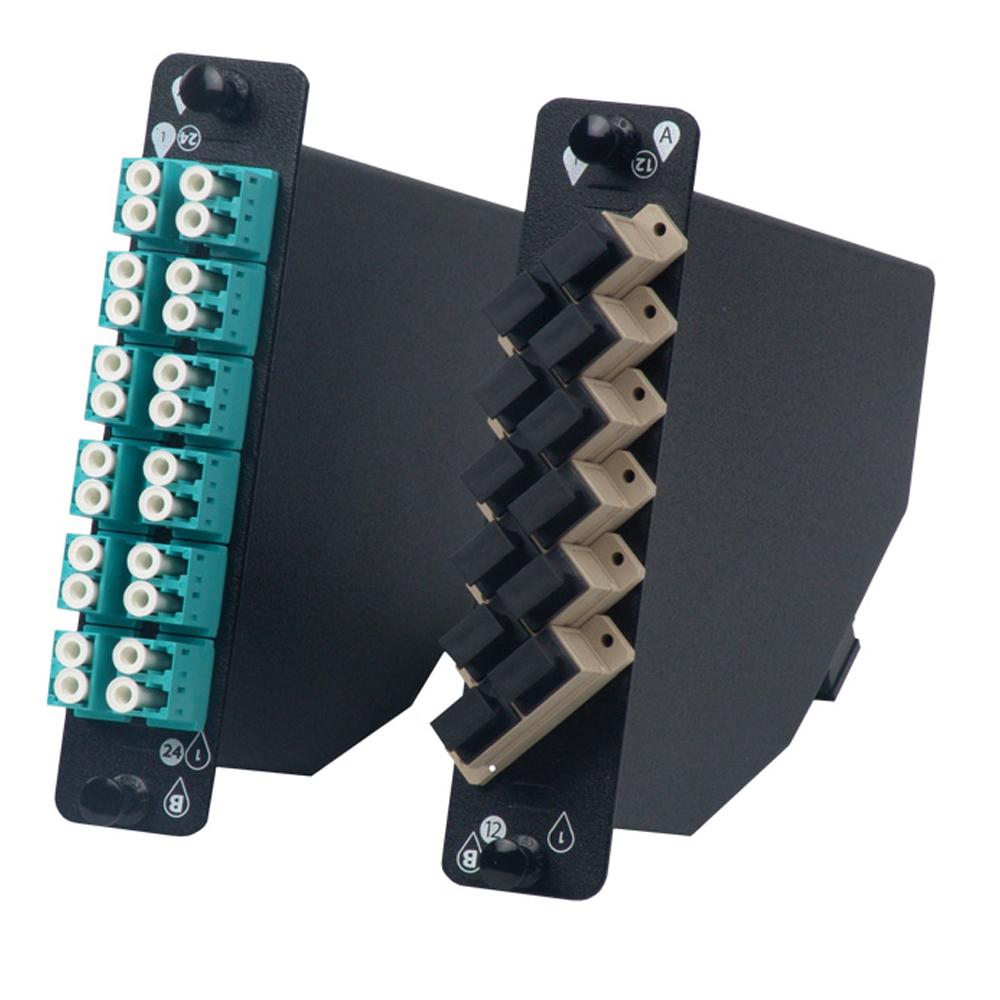

Xpress Fiber Management® (XFM) MPO Optical Cassettes, Multimode OM4 50/125, LC & SC, 12 - 24 Ports
AFL’s Xpress Fiber Management Optical Cassette product line is a family of preterminated fanout modules that streamline the deployment of optical network infrastructure. The primary function of these products is to break out multi-fiber ribbon connectors to simplex or duplex style connectors for connection to adjacent network elements.
- 12- and 24- port configurations
- ANSI/TIA/EIA-568-B.3 compliant
- Single-slot LGX packages
- Compatible with LANSystem and WME hardware
- Available in black with rear MPO connection(s)
- SMF, 62.5 µm MMF and 50 µm MMF supported
- SC- and LC-MPO standard configurations
- ST- and FC-MPO configurations available on special order
Width: 5.12" (130mm)
Height: 1.14" (29mm)
Depth: 5.06" (128.6mm)
MTP® High Density Cassettes
The Xpress Fiber Management Optical Cassette solution features low-loss MPO style trunk cable assemblies. These cassettes are available in the industry standard LGX® footprint as well as a selection of Corning Cable Systems™ footprints to support embedded base installations. All modules feature a durable powder coat finish and are compatible with all 1U-4U LANSystem platforms. All modules are clearly labeled with a silk-screened "A" and "B" positioning reference to ensure proper polarity is maintained in the network, referenced to the polarity convention being deployed.
