Single Mode / Multimode Fiber Test Kit
The ZOOM II / Dual 850 / Laser 1310 Test Kit is ideal for LAN managers and installers who need to do simple attenuation tests on their multimode and single mode networks.
The ZOOM II (Zeroed Output Optical Meter) is an economical fiber optic power meter. It provides accurate testing of multimode fiber cables. The 4-digit 7-segment LED display shows power readings with a resolution of 0.01dB. On-screen indicators display measurement units (dBm, dB, uW), as well as battery life. The ZOOM II comes configured with a 2.5mm universal connector for connection to ST or SC connectors, as well as any other fiber connector with a 2.5mm ferrule.
The Dual 850 is a NIST traceable multimode light source. Its LED output is temperature-stabilized for accurate measurements, and compliant to national and international testing standards for certification.
The Laser is a NIST traceable single mode light source. Its FP laser wavelength output is temperature-stabilized for accurate measurements, and compliant to national and international testing standards for certification.
Features
Features
- Economical option for quick attenuation and loss testing of both multimode and single mode networks
- Easy-to-read 4-digit 7-segment LCD display
- Store reference values for calibrated wavelengths
- Intuitive 2-button interface on both units
- On-screen wavelength, measurement units, and low battery indicator
- NIST traceable
Specifications
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| ZOOM 2 OPTICAL POWER METER | |
| DETECTOR | InGaAs 1mm |
| CALIBRATED WAVELENGTHS | 850nm, 1300, 1310nm, 1490, 1550nm |
| MEASUREMENT RANGE | +5 to -60 dBm |
| ACCURACY¹ | ±0.15 dB |
| LINEARITY¹ | ±0.20 dB |
| RESOLUTION | 0.01 dBm |
| BATTERY LIFE | Up to 250 hours |
| OPERATING TEMPERATURE | -10 to 55°C |
| STORAGE TEMPERATURE | -30 to 70°C |
| NIST TRACEABLE | Yes |
| BATTERY CAPACITY DISPLAY | Yes |
| CONNECTOR | 2.5mm Universal |
| WIDTH | 2.75” |
| HEIGHT | 4.94” |
| DEPTH | 1.28” |
| WEIGHT | 154g |
| 1: OVER RANGE OF 0 TO -45 DBM | |
| CONFORMS TO THE HARMONIZED EUROPEAN STANDARDS EN 61326-1 AND EN 61010-1 | |
| DUAL 850 MULTIMODE LIGHT SOURCE | |
| LAUNCH METHOD | LED |
| CONNECTOR | ST or SC |
| CENTER WAVELENGTH | 850 ±30nm |
| SPECTRAL WIDTH | 60 nm |
| OUTPUT POWER | -20.0 dBm |
| INITIAL ACCURACY | 0.1 dB |
| FIBER TYPE | Multimode |
| BATTERY LIFE | 40 hrs. |
| BATTERY CAPACITY DISPLAY | Yes |
| OPERATING TEMPERATURE | 0 to 55°C |
| STORAGE TEMPERATURE | 0 to 75°C |
| WIDTH | 2.75” |
| HEIGHT | 4.94” |
| DEPTH | 1.28” |
| WEIGHT | 154g |
| CONFORMS TO THE HARMONIZED EUROPEAN STANDARDS EN 61326-1 AND EN 61010-1 | |
| LASER 1310 SINGLEMODE LASER SOURCE | |
| LAUNCH METHOD | FP Laser |
| CONNECTOR | ST, SC, or FC |
| CENTER WAVELENGTH (1310NM) | 1310 ±30nm |
| SPECTRAL WIDTH (FWHM) | 2 nm |
| OUTPUT POWER | -10.0 dBm |
| INITIAL ACCURACY | 0.1 dB |
| FIBER TYPE | Singlemode |
| BATTERY LIFE | 25 hrs. |
| BATTERY CAPACITY DISPLAY | Yes |
| OPERATING TEMPERATURE | 0 to 55°C |
| STORAGE TEMPERATURE | 0 to 75°C |
| WIDTH | 2.75” |
| HEIGHT | 4.94” |
| DEPTH | 1.28” |
| WEIGHT | 154g |
| CONFORMS TO THE HARMONIZED EUROPEAN STANDARDS EN 61326-1 AND EN 61010-1 | |

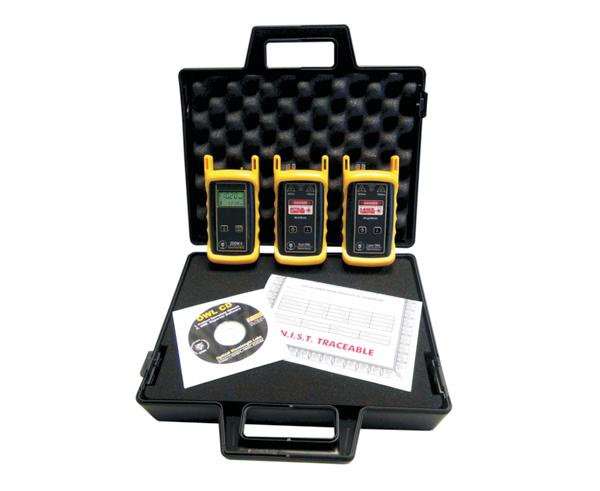

What's In The Box
What's In The Box
- Qty 1 - ZOOM II Optical Power Meter
- Qty 1 - 850nm Multimode Laser Source
- Qty 1 - 1310nm Single-Mode Laser Source
- Qty 1 - Protective Carrying Case
- Qty 1 - Product Manuals Packet
- Qty 1 - NIST Certificate
- Qty 2 - 9-volt Batteries
- Qty 2 - Protective Rubber Boots (ST Connectors)
