Description
Cable Ladder Rack Elevation Kit
Our Elevation Kits are used to increase the space between a cable ladder rack and server. This kit mounts using a Ladder-To-Rack Mount Plate on the base and also mounts to side stringers of a cable ladder rack. This kit has different elevation adjustments from 2" - 3" or 4" - 6".
Product Quality
This product is manufactured by DAMAC products, DAMAC has a reputation for providing excellent data center infrastructure equipment.
Durability & Strength
Our Elevation Kits are constructed from quality tubular steel that is black powder coated, providing strength and stability for a long service life.
Features
Features
- Adds Space above Server Racks.
- Fully adjustable to various heights.
- The material is made out of structural steel
- Black Powder Coat Finish
- Damac manufactures and distributes all of it's products out of La Mirada, California.
Specifications
| Sizes (W x L) | Shipping Weight | Color / Finish | Material |
| 2" x 3" | 8 lbs. | Black Epoxy Powder Coat | Steel |
| 4" x 6" | 8 lbs. | Black Epoxy Powder Coat | Steel |

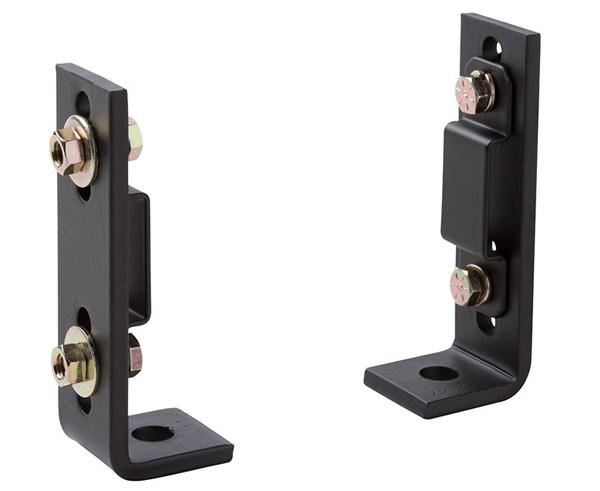

2" - 3" Elevation Kit:

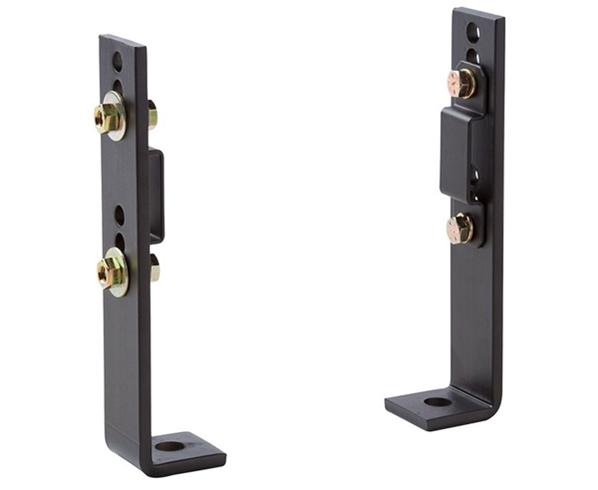

4" - 6" Elevation Kit:
Additional Information
This product is part of a line that is ideal for data center applications. The diagram below shows how these products can work together to form a complete system.
Rack Bracing and Mounting Accessories
Add Stability to your network with our Bracing and Mounting Kits, for 2 and 4 Post server racks. It not only secures racks to walls and floors but also provides a measure of earthquake safety, keeping network equipment from falling over. These kits have the ability to create a 4 post rack from two 2 post racks. The Cable Ladder Rack Termination Kit can be combined with a wide array of products such as:

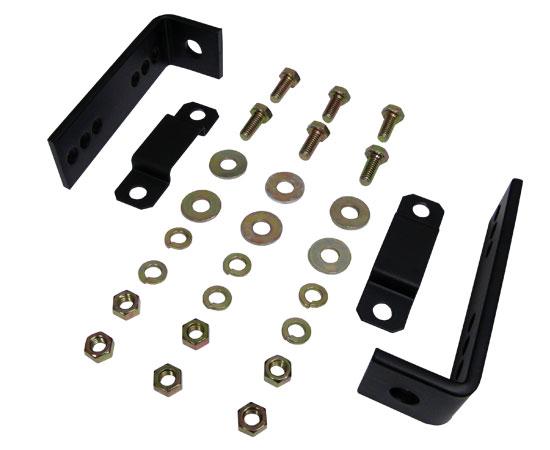

What’s In The Box
What’s In The Box
2"-3" Elevation Kit:
- Qty 2 - Clamp Brackets
- Qty 2 - Elevation Brackets
- Qty 5 - Split Lock Washers
- Qty 5 - Mach Screw
- Qty 5 - Hex Nuts
4"-6" Elevation Kit:
- Qty 2 - Clamp Brackets
- Qty 2 - Elevation Brackets
- Qty 6 - Flat Washers
- Qty 6 - Split Lock Washers
- Qty 6 - Mach Screw
- Qty 6 - Hex Nuts
