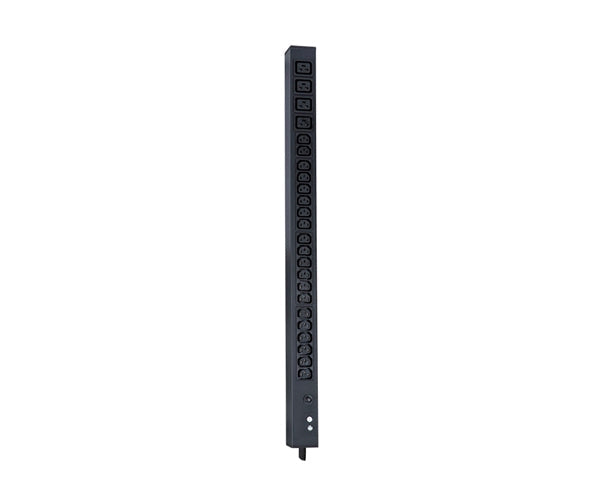

Basic Rack Mount PDU - 20A, 200-240V, 3.3kW w/IEC C13 & C19 Outlets (Vertical)

Fiber Savvy Basic Rack Mount PDUs distribute reliable power to IT equipment in a wide variety of applications where intelligence and/or remote monitoring are not required.

It features (20) IEC C13 and (4) IEC C19 outlets protected by a single 20A circuit breaker, a reset button in the event of an overload, and a durable anodized aluminum chassis. A 10 ft power cord with a NEMA L6-20P twist-lock plug connects to an external power supply, while the versatile mounting design allows outlets to face any of three directions.

Features

Features

20 C13 and 4 C19 outlets
Single 20A circult breaker w/reset button
Switchless design prevents accidental shutdowns
Includes button mounts for vertical mounting to Vericom network and server cabinets, toolless mounting brackets that allow outlets to face the front, rear, or side, and additional brackets for mounting to rack rails
Conforms to UL 60950-1 and is RoHS compliant

Specifications

Specifications

OVERVIEW
Item Number	NPNB-VPB-L622439V
PDU Type	Basic
Form Factor	Vertical (zero U)
UPC Code	846788117345
OUTPUT
Rated Output Voltage	208V Single Phase
Output Recepticles	(20) IEC C13 + (4) IEC C19
Overload Protection	(1) 20A Circuit Breaker
INPUT
Rated Input Voltage	200-240V Single Phase
Max. Input Current	20A
Frequency	50/60 Hz
Power Capacity	3.3 kW
Plug Type	NEMA L6-20P Twist-lock
Cord Type	12/3 AWG
Cord Length	10 ft (3.05 meters)
PHYSICAL
Unit Width	31.9 inches (812mm)
Unit Height	2.2 inches (55mm)
Unit Depth	2.2 inches (55mm)
Unit Weight	5.6 lbs (2.54 kgs)
Shipping Length	40.5 inches (1,028.7mm)
Shipping Width	6.3 inches (160.0mm)
Shipping Depth	4.5 inches (114.3mm)
Shipping Weight	7.7 lbs (3.5 kgs)
Chassis Material	Annodized Aluminum (black)
Mounting Options	1) Adjustable button mounts, 2) Adjustable right-angle mounting brackets 3) Toolless 4-way mounting brackets
ENVIRONMENTAL
Operating Temperature	30° to 140° F (0° to 60° C)
Operating Relative Humidity	0 - 95%
Operating Elevation	0 - 13,123 ft (4,000 meters)
SPECIAL FEATURES
Breaker Reset	Push button on front
COMPLIANCE
Certifications	• Tested to conform to UL 60950-1; IEC 60950-1:2005 (Second Edition) + Am 1:2009 + Am 2:2013: CB Scheme • RoHS

What's in the box?

What's in the box?

Qty 1 - Basic Rack Mount PDU - 20A, 200-240V, 3.3kW w/IEC C13 & C19 Outlets (Vertical)
